Mud Motor Stand
ME110MMpan

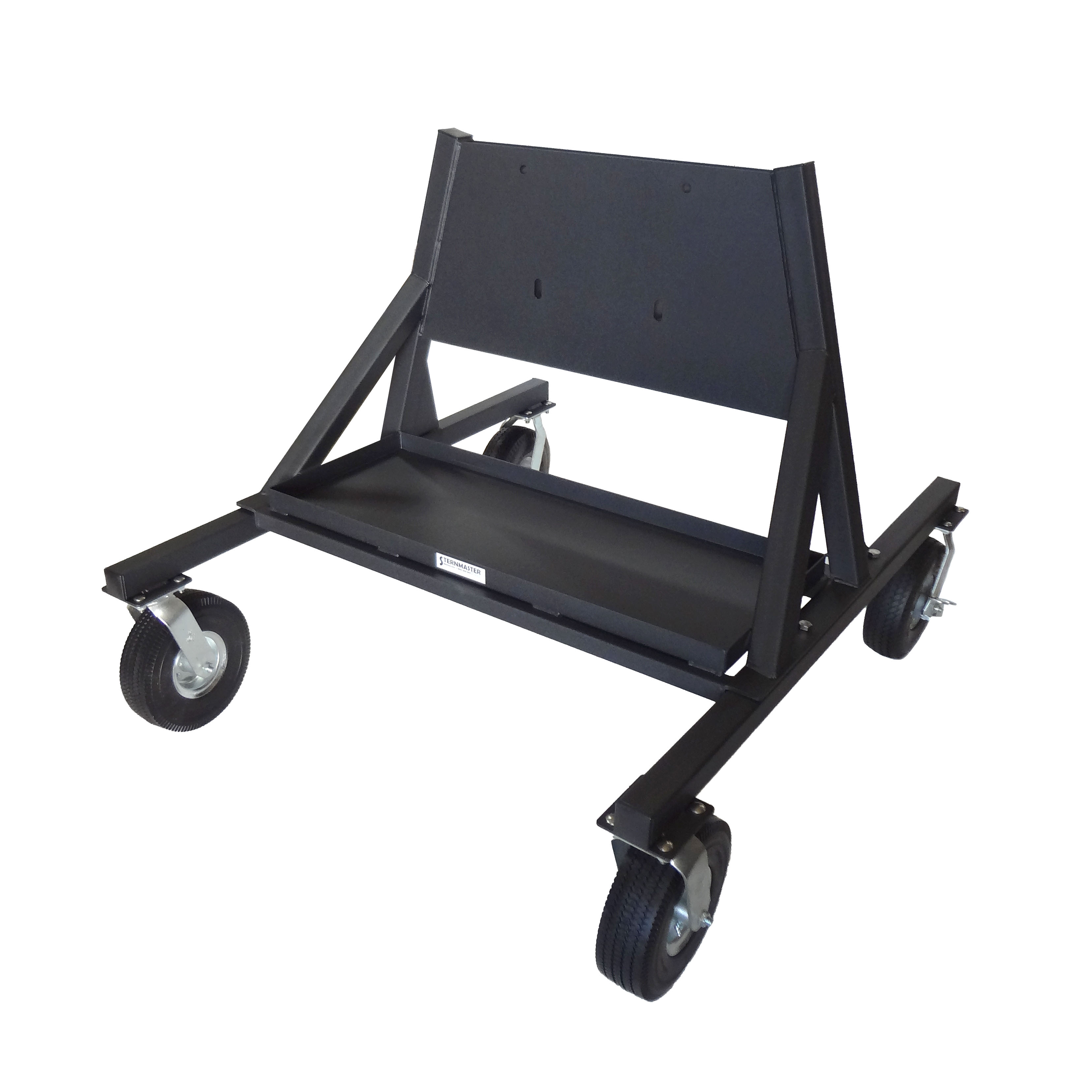

ME-110 Mud Motor Stand featuring foam filled tires

Mud Motor Stand

$999.00
SKU: ME-110MM
The ME-110MM Mud Motor Stand will hold mud motors for service and storage. *Shown in optional color Black, Red is standard* MADE TO ORDER
*Please note the ME-110MM ships on a skid and must be shipped to a business location with the proper unloading facilities.
Shipping
Shipping Cost: $99.00
Accepting a Skid:
To speed up our shipping process, please select the proper option.
Facility Type:
A limited access or residential address need special accessorials for freight. To speed up our shipping process, please select the proper option.
Back to: Service Equipment & Stands

Proudly Designed and Manufactured in Zeeland, MI.

We accept Visa, MasterCard, Discover, and American Express

Call our Sales Team: 9am-5pm EST 1-800-305-8117

Most products (unless otherwise stated) are shipped 1-2 business days after an order is placed

For shipping outside of the Continental US please email or call our US based sales staff.

Mud Motor Stand - ME-110MM

MADE TO ORDER

  • Capacity Maximum load of 700 lbs
    Mud Motor Outboards
    If you need a higher weight capacity inquire about other caster options
  • Dimensions Length: 49 1/2 inches
    Width: 42 1/4 inches
    Height: 40 inches
  • Weight 150 lbs
  • Materials Steel
    Red Powdercoat
    10" Foam Filled All Terrain Tires, 2 Locking, 2 Non-Locking


  • Shipping Please note the shipping quote at checkout is for a continental US business address.
    Call our Sales Team at 1-800-305-8117 if you are shipping to a residential address, school, military location, or internationally.


The ME-110MM is designed to hold various types of Mud Motors for service work. It features the same large foam filled rubber tires as the ME-110AT, which easily roll over gravel, grass, hoses, and concrete. Two of the wheels lock for maximum stability. The stand's mounting surface simulates a transom, both in angle and thickness, keeping the outboard naturally oriented while you work. The uprights are angled toward each other on either side of the engine to maximize accessibility. Includes the bolt holes fitting standard bolt-on outboard motors. There is a welded pan between the legs for tools/oil pans, etc. The ME-110MM has a maximum weight capacity of 700 lbs, due to the foam filled tires. If you have a heavier mud motor please contact us for our other caster options, which will increase the weight limit.


View Assembly Instructions

Units in box: 1

Will my mud motor fit the ME-110MM?

Probably. Please call with any questions. The ME-110MM holds up to 700lbs due tot he foam filled tires. We can swap those out with a smaller hard caster for a higher weight capacity.



Can I get the ME-110MM in a different color?

Yes, but there will be a longer lead time and most likely an extra charge.

  • We stock limited quantities of the ME-110MM in red
  • We can substitute black powder coat as pictured at no extra charge, but with a 1-2 week lead-time.
  • Any other color will require an extra charge and longer lead time. Please contact us with your desired color for quotes
